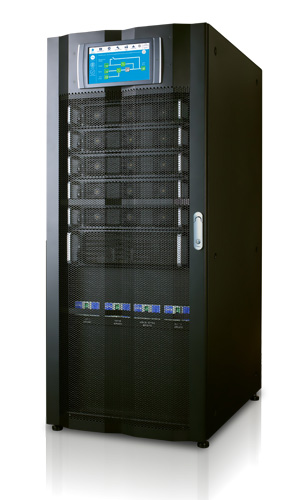

DPH Series, Three Phase UPS, 20 - 80/120 kVA
The next generation of modular UPS systems designed for ultimate availability,excellent performance, high efficiency, and ideally suited for medium-sizeddatacenters.
In this IT intensive world with heavy data traffic driven by cloud, 4G/5G and media streaming applications, IT managers are facing the challenges of increasing rack power density and limited data center space. Delta's innovative modular UPS technologies provide the answer to customers' demand for ultimate availability, excellent performance, and high efficiency. The brand-new Delta Modulon DPH series UPS 80/120 kVA achieves the industry's leading power density of 20kW per module in 2U height, offering the smallest footprint and best space utilization. The Modulon DPH Series UPS is the ideal modular power protection for all critical IT application with its’ small package, flexibility and seamless integration.
Features
Excellent Power Performance
The industry's leading power technology offers up to 120kW within all equipped breakers in 162.8 kW/m3 which supports the top/bottom cable entry without additional cabinet to achieve the best utilization compared with its peers
High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings
Green mode featuring a load aggregation function optimizes system efficiency
Ultimate Availability
Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk
Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure
Key components aging pre-warning mechanism to provide the proactive reliability to minimize the human error and reduce the downtime risk (optional)
High Manageability

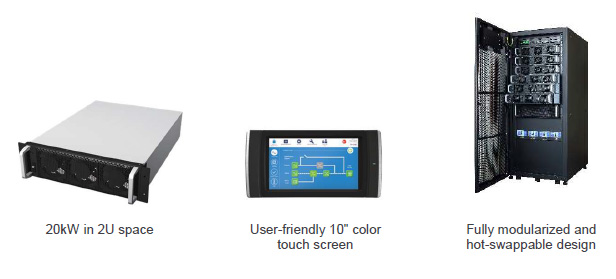

User-friendly 10" color touch screen enables easy local UPS management
Environment information such as temperature, humidity and transmits signals from environment sensor can be integrated into the UPS for easy monitoring via the LCD of the UPS
If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS
Technical Specifications
Model
DPH 80 System / DPH 120 System
Power Rating
DPH 80 System
20/40/60/80kVA
20/40/60/80 kW
Power Module Quantity : Up to 4 units
DPH 120 System
20/40/60/80/100/120kVA
20/40/60/80/100/120kW
Power Module Quantity : Up to 6 units
Input
Nominal Voltage
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
Voltage Range
305~478 Vac (full load)
Current Harmonic Distortion
≤ 2% *
Power Factor
> 0.99
Frequency Range
50/60 Hz
Output
Voltage
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
Voltage Harmonic Distortion
≦ 1% (linear load)
≦ 4% (non-linear load)
Voltage Regulation
±1% (static)
Frequency
50/60 Hz
Overload Capability
≦ 125% : 10 minute
≦ 150% : 1 minute
>150%: 1 second
Display
10” color touch screen
Interface
Standard
External battery temperature dry contact x 4, External switch/breaker status dry contact x 4, Output dry contact x 6, Input dry contact x 4, Parallel port x 2, USB Port (Type A x 2
Conformance
Safety
CE (IEC62040-1, IEC62040-2 (C3: standard, C2: optional)
Efficiency
AC-AC Mode
> 96% (Peak efficiency)
ECO Mode
99%
Battery
Nominal Voltage
±240 Vdc (default, ±180Vdc~±276Vdc configurable)
Charge Voltage
±272Vdc (adjustable from 204V to 312V)
Protection of Battery Deep Discharge
Yes
Environment
Operating Temperature
0 ~ 40℃
Relative Humidity
95% (non-condensing)
Audible Noise (at one meter)
< 65 dB
IP Protection
IP20
Others
Parallel Redundancy and Expansion
Module and system redundancy, Maximum 8 units
Battery Start
Yes
Physical
Dimensions (W x D x H)
600 x 850 x 1445 mm
Weight : UPS System (without power modules)
DPH 80 System : 150 kg
DPH 120 System : 162 kg
Weight : 20kW Power Module (optional)
18 kg
* When input voltage total harmonic distortion input is less than 1%
All specifications are subject to change without prior notice.
