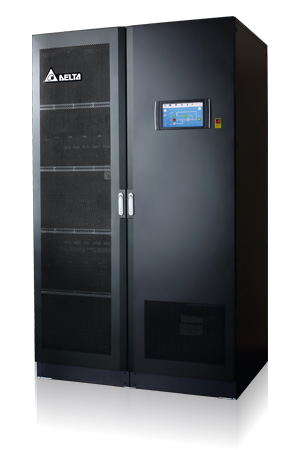

DPS Series UPS, Three Phase, 500/600/1000/1200 kVA

The Next Generation UPS Answering the Demand of Large Data Centers and Colocations

Delta's superior Ultron DPS series 500 - 1200kVA UPS supports unity output power factor to deliver up to 10 MW power capacity to meet the demands for large data centers and colocations that require higher power capacity. The Ultron DPS series guarantees the highest level of system reliability and resiliency by supporting self-detection of key components with pre-warning function, multilayered redundancy design, and complete power rating coverage. Moreover, the DPS series supports advanced manageability. Key environment parameters, and event analysis can all be monitored via local 10” LCD monitor and remotely. Along with optional battery management software, the DPS series enables users to achieve predictive maintenance and minimize system downtime, while lowering the total cost of ownership (TCO).

Applications:

Medical & Healthcare
Industrial System
BFSI / ATMs
Telecommunication
Broadcasting
Priting Graphics Arts
Retails

Features

* DPS Series 1000/1200 kVA is coming soon.
Ultimate Availability
Supports up to 10 MW power capacity with the parallel redundancy and expansion up to 8 units
Redundancy components and dual CAN bus ensures system availability
Proactive detection of key component status for early diagnosis on UPS malfunction
Advanced event analysis, including 10, 000 event logs, waveform capturing and key paremeters recording, to detect UPS abnomality and ensure higher availability
Excellent Performance
The industry's leading power density and smallest footprint with the design of both top/button cable entry and inbult switches, which allows you to flexibly utilize the space under the circumstance of high power requirements
AC-AC efficiency of up to 96.5% and 99% in ECO mode resulting in marked energy cost savings
Supports both VRLA and environment-friendly Li-ion batteries
Sophisticated Manageability and Flexibility
User-friendly 10” color touch panel simplifies local UPS management
Environment information, such as security, water, fire, and temperature can be integrated and monitored via the LCD panel of the UPS
If the UPS is equipped with an external battery management system, the battery information can be integrated and monitored via the LCD panel of the UPS
Fully front access and modular design of key components shortens the mean time to repair (MTTR)
Flexible battery quantity of 30-46 pcs achieves optimal battery investment

Technical Specifications

* DPS Series 1000/1200 kVA is coming soon.
Model

DPS-500K
Power Rating : 500kVA / 500kW
DPS-600K
Power Rating : 600kVA / 600kW
DPS-1000K
Power Rating : 1000kVA / 1000kW
DPS-1200K
Power Rating : 1200kVA / 1200kW
Input

Nominal Voltage
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
Voltage Range
176/304~276/478 VAC (full load)
Current Harmonic Distortion
<3% (with Full Linear Load)

<5% (with Full Non-linear Load)
Power Factor
> 0.99
Frequency Range
40 ~ 70 Hz
Output

Voltage
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
Voltage Harmonic Distortion
<1.5% (Linear Load)

<5% (Non-linear Load)
Voltage Regulation
±1 (static), ±5 (dynamic)
Output Power Factor
1
Frequency
50/60Hz (Auto-Selectable)
Overload Capability
≦ 125%: 10 min

≦ 150%: 1 min

>150%: 1 sec
Display
10” Color Touch Panel
Interface

Standard
RS232, Parallel port, USB, Modbus RS485, Input dry contact, Output dry contact, SNMP card inbuilt in touch screen
Optional
Relay I/O card, Battery cabinet temperature sensor cable
Conformance
Safety : CE
Efficiency

AC-AC Mode
Up to 96.5%
ECO Mode
99%
Battery

Type
VRLA, LiB
Charge Current
DPS-500K : 150A

DPS-600K : 180A

DPS-1000K : 300A

DPS-1200K : 360A
Environment

Operating Temperature
0 ~ 40℃
Relative Humidity
0 ~ 95% (non-condensing)
Audible Noise
<80 dB
IP Protection
IP 20
Others

Parallel Redundancy and Expansion
Maximum 8 units
Emergency Power Off
Remote and local
Physical

Dimensions (W x D x H)
DPS-500K / DPS-600K : 1200 x 900 x 2000 mm

DPS-1000K / DPS-1200K : 2800 x 900 x 2000 mm
Weight
DPS-500K : 890kg

DPS-600K : 950kg

DPS-1000K : 1870kg

DPS-1200K : 2000kg
* All specifications are subject to change without prior notice.
