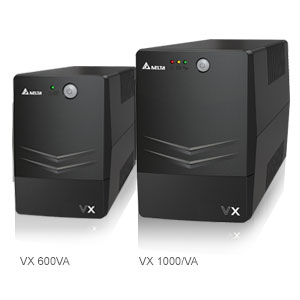

VX Series, Line-interactive, 600/1000VA

Introduction

Reliable power protection for small business and home office applications

The Agilon VX line-interactive UPS designed with microprocessor control offers reliable and cost-effective power protection for PCs, laptops, POS, and other sensitive electronics used in home offices and small businesses. The integrated Automatic Voltage Regulation (AVR) ensures all electronics are receiving stable power while providing higher availability. The Agilon VX series’ LED indicators, auto-shutdown software and other superior features make these units perfect for your data protection.

Features

Reliability
The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality.
Excellent microprocessor control enables accurate detection of power frequency for higher reliability.
Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time.
Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start).
UPS is able to restart automatically while utility power is recovering.
Surge protection defends your critical load against damage.
Convenience
Several standard Indian sockets simplify the connectivity to computer and IT peripherals.
Compact size saves more space for critical equipment.
Manageability
Standard USB communication port enhances monitoring and manageability (Only applicable for 1000VA model).
Advanced UPS management software provides remote shutdown and control.


Product available regions : EMEA, SEA, India, Korea Because product specifications vary slightly from region to region, please download your local leaflet or visit your local website for detailed product information.

Model
VX-600VA / VX-1000VA / VX-1500VA
Power Rating

VX-600VA
600VA / 360W
VX-1000VA
1000VA / 600W
VX-1500VA
1500VA / 900W
Input

Nominal Voltage
230 VAC
Voltage range
170-280 VAC
Frequency Range
50/60 Hz (Auto sensing)
Output

Voltage
230VAC ± 10% (Battery mode)
Frequency Range
50/60 Hz ± 1 Hz
Waveform (Batt. Mode)
Simulated Sinewave
Receptacle
[VX-600VA]: IEC 320 C13 x4

[VX-1000VA]: IEC 320 C13 x4

[VX-1500VA]: IEC 320 C13 x6 (EMEA model), IEC 320 C13 x4 (SEA model)
Battery

Battery Type & Number
[VX-600VA]: 12V/7AH x1

[VX-1000VA]: 12V/7AH x2

[VX-1500VA]: 12V/9AH x2 (EMEA model), 12V/7AH x2 (SEA model)
Typical Recharge Time
6-8 hours to 90%
Cold Start
Yes
Indicator

LCD
Input voltage, output voltage, battery capacity, load level and UPS status
Interface

Standard
1 USB port
Environment

Operating Temperature
0~40ºC
Altitude
0-1000m
Relative Humidity
0-90% RH (Non-condensing)
Noise Level
[VX-600VA]: < 40 dB

[VX-1000VA]: < 40 dB

[VX-1500VA]: < 45 dB
Conformance

Safety & EMC
CE
Physical

VX-600VA
Dimensions (W x D x H): 101 x 300 x 142 mm

Net Weight: 4.4 Kg
VX-1000VA
Dimensions (W x D x H): 130 x 320 x 182 mm

Net Weight: 8.2 Kg
VX-1500VA
Dimensions (W x D x H): 130 x 320 x 182 mm

Net Weight: 10.4 Kg
All specifications are subject to change without prior notice.
