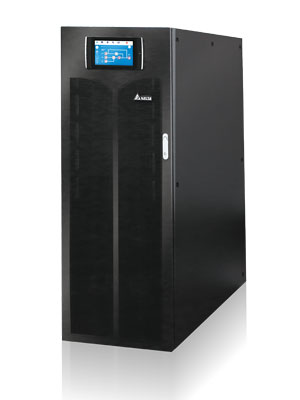

Ultron HPH Series UPS, Three Phase, 160/200KVA

Highly reliable and efficient backup power for medium enterprise operations

The brand-new Ultron HPH series 160-200kVA is a true online double-conversion UPS offering the best-in-class combination of power performance and efficiency for medium data centers, pan-IT, and other mission critical applications. Thanks to Delta's R&D expertise and excellent engineering capabilities, the Ultron HPH features up to 96.5% AC-AC efficiency, low iTHD < 3%, and high input power factor > 0.99 resulting in significant total cost of ownership (TCO) savings. Highlights of the highly reliable Ultron HPH series UPS design include key component redundancy and proactive battery health detection. With its combination of superior availability and power performance, the Ultron HPH 160-200kVA is the top choice for power protection of sustainable medium business operations.

Applications:

Medical & Healthcare
Industrial System
BFSI / ATMs
Telecommunication
Broadcasting
Priting Graphics Arts
Retails

Features

Best-in-class Power Performance and Efficiency
High AC-AC efficiency of up to 96.5% and ECO mode to 99% for significant energy cost savings
Low harmonic pollution (iTHD < 3%) and high input power factor (> 0.99) reduces upstream investment costs
Assured Availability
Optional redundant controller supports dual CAN bus and ring connection for high system availability
Proactive battery aging detection for high reliability
Easy event log check via touch panel and firmware upgrade via USB port
Greater Flexibility
Parallel expansion and redundancy up to 8 units, 1.6MVA of total power capacity
Flexible battery configuration 30~46 pieces optimizes battery investment
Supports either top or bottom cable entry in the single cabinet. The unique fixed symmetric terminal design avoids cable bending issues to enhance cable reliability
Superior Manageability
User-friendly 10” colored LCD with touch panel enables easy local UPS management
Environment information such as security, water, fire and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS
If the UPS is equiped with Delta's battery management system, the battery information can be integrated into the UPS and monitored via LCD

Technical Specifications

Model
HPH-160K / HPH-200K
Power Rating
HPH-160K : 160kVA* / 150kW

HPH-200K : 200kVA / 200kW
Input

Nominal Voltage
220/380 Vac, 230/400 Vac , 240/415 Vac (3-phase, 4-wire + G)
Voltage Range
176 ~ 276Vac (full load)
Current Harmonic Distortion
≦ 3% **
Frequency
40 ~ 70 Hz
Output

Voltage
220/380 Vac, 230/400 Vac , 240/415 Vac (3-phase, 4-wire + G)
Voltage Harmonic Distortion
≦ 0.5% (linear load)
Frequency
50/60 Hz
Frequency Regulation
±0.05 Hz (battery mode)
Overload Capability
≦ 125% : 10 minutes

≦ 150% : 1 minute
Display
10” color touch screen
Interface

Standard
RS232 x 1, Parallel port x 2, USB x 3, RS485 x 1, Relay I/O card slot x 1, REPO x 1, Input dry contact x 4, Output dry contact x 6,

Battery temperature sensor x 4, External switch detection x 4, RJ45 x 1, Ethernet x 1
Optional
Relay I/O card, Battery cabinet temperature sensor cable
Conformance

Safety
CE, RCM
UPS Classification According to IEC 62040-3
VFI-SS-111
Efficiency

AC-AC Mode
Up to 96.5%
ECO Mode
99%
Battery

Nominal Voltage
±240 Vdc
Charge Voltage
±272 Vdc (adjustable from 204V to 312V)
Battery number configuration
30 ~ 46pcs (default: 40pcs)
Environment

Operating Altitude
1000 meters (without derating)
Operating Temperature
0 ~ 40℃
Audible Noise
<70 dB
Relative Humidity
0 ~ 95% (non-condensing)
Others

Parallel Redundancy and Expansion
Maximum 8 units
Remote Emergency Power Off
Yes
Battery Start
Yes
Physical

Dimensions (W x D x H)
600 x 1100 x 1600 mm
Weight
HPH-160K : 339 kg

HPH-200K : 376 kg
* The power rating is adjustable from default 160kVA to 150kVA via touch panel.
** When input vTHD is less than 1%

All specifications are subject to change without prior notice.
