Online Ups

DPS Series, Three Phase, from 160 to 500 kVA, scalable up to 4000kVA in parallel

Leading in power performance and efficiency

Delta’s Ultron DPS is a double-conversion and IGBT-rectifier three phase UPS. With the three level IGBT topology for both PFC (power factor correction) and inverter, the Ultron DPS features industry leading performance of up to 96% AC-AC efficiency. Thanks to Delta’s advanced digital PFC control, it also has low iTHD < 3% and high input power factor > 0.99 resulting in significant total cost of ownership (TCO) savings. Aiming to achieve the highest availability possible, Delta has enhanced special designs for battery management, hot-swappable fans and ease of maintenance.

The excellent power performance and high system availability of the Ultron DPS provide customers with the benefits of a stable power supply, high power efficiency, low capital investment and low overall operation cost.

Features

High Reliability

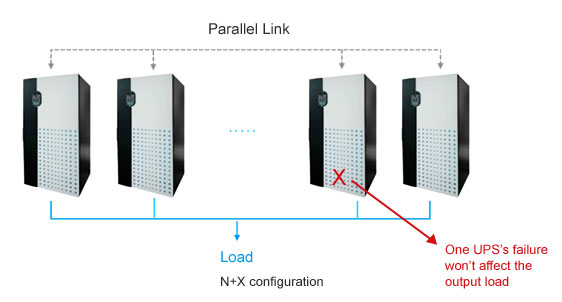

N+X redundancy or hot-standby configuration increases system reliability

Wide input voltage range (DPS 160~500kVA : -40% ~ +20%) allows the UPS to work in harsh electrical environments

Field programmable sequential start-up reduces the impact on the generator

Intelligent fan speed control and redundant fan design prevent UPS from overheating and increase system reliability

N+X redundancy or hot-standby configuration increases system reliability



Reduced Total Cost of Ownership

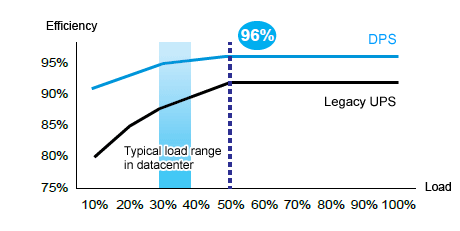

High AC-AC efficiency even at light load levels reduces energy loss and saves operating costs

High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) eliminate the need to over

High AC-AC efficiency even at light load levels reduces energy loss and saves operating costs



High Flexibility

Delta Ultron DPS series UPS are available in full power ratings ranging from 160kVA to 500kVA in a single unit to fit each specific application requirement.

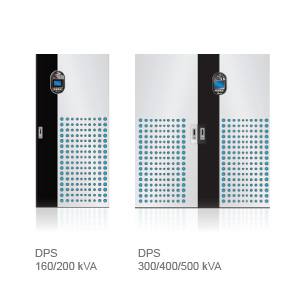

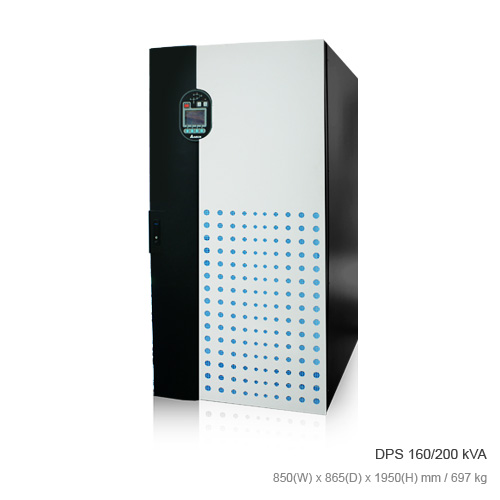

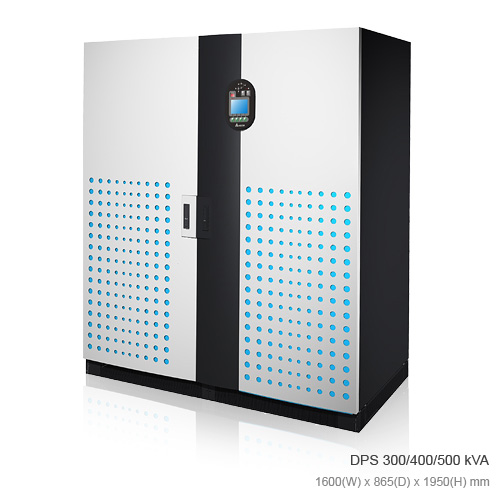

There are three different cabinets of Ultron DPS series UPS with optimized footprint. Customers can save valuable space from the leading power density and compact design. Light weight also reduces transportation and installation costs.

Parallel expansion of Ultron DPS series UPS up to 4000kVA without extra hardware allows quick capacity upgrade to meet business growth.

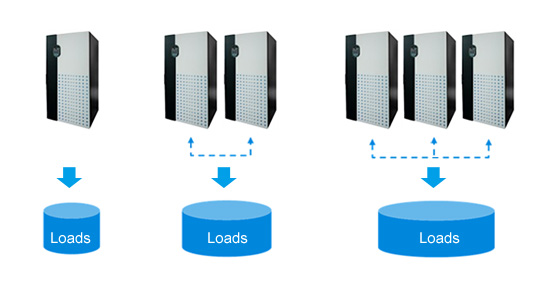

Parallel expansion of Ultron DPS series UPS up to 3200kVA

Common batttery configuration of Ultron DPS in parallel mode can support customers to:

Significantly save installation space and rent expenses

Reduce additional investment on batteries

Make UPS expansions easier without addi tional battery investment

Save the costs of possible floor loading enhancement

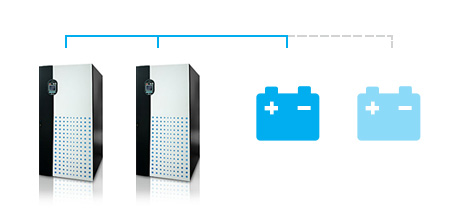

Common batttery configuration of Ultron DPS in parallel mode can support customers

Easy Maintenance

Hot-swappable fans reduce maintenance lead time (applicable for models 160~500kVA)

Built-in manual bypass allows “zero downtime” to ensure system availability during service maintenance

Main I/P and O/P switches detection provide quick diagnosis when faults occur

Hot-swappable Fan



Intelligent Battery Management

Delta intelligent battery management system can sustain battery lifespan and the capacity of battery backed up through the functions of :

Battery temperature monitoring & compensation

Battery remaining capacity displayed in percentage

Over charge/discharge protection

Boost/float stage charge

Auto/manual battery test

38~42 battery units in one battery cabinet optimizes investment (applicable for models 160~500kVA)



Technical Specifications

Model
NT-20K / NT-30K / NT-40K / NT-50K

NT-60K / NT-80K / NT-100K / NT-120K

NT-160K / NT-200K / NT-260K

NT-320K / NT-400K / NT-500K
Power Rating
NT-20K : 20kVA / 16kW

NT-30K : 30kVA / 24kW

NT-40K : 40kVA / 32kW

NT-50K : 50kVA / 40kW

NT-60K : 60kVA / 48kW

NT-80K : 80kVA / 64kW

NT-100K : 100kVA / 80kW

NT-120K : 120kVA / 96kW

NT-160K : 160kVA / 128kW

NT-200K : 200kVA / 160kW

NT-260K : 260kVA / 208kW

NT-320K : 320kVA / 256kW

NT-400K : 400kVA / 320kW

NT-500K : 500kVA / 400kW
Input

Nominal Voltage
208/120, 380/220, 400/230, 415/240, 480/277 Vac (3 phase, 4-wire + G)
Voltage Range
305~499 Vac
Current Harmonic Distortion
< 3% (with optional power filter, full load)
Frequency
45~65Hz
Output

Voltage
208/120, 380/220, 400/230, 415/240, 480/277 Vac (3 phase, 4-wire + G)

220, 230, 240 Vac (1 phase, 2-wire + G)*
Output Power Factor
0.8
Voltage Harmonic Distortion
≤ 3% (linear load)
Voltage Regulation
± 1% (static)
Frequency
50/60 Hz ± 0.01% (internal oscillator)

± 1% (synchronized)
Overload Capability
≤ 110%: 60 minutes

110 ~ 125%: 10 minutes

126 ~ 150%: 1 minute
Interface

Standard
RS232 x 1, RS485 x 2, SMART slot x 1, Output dry contact x 6
Other Features

Parallel Redundancy
Up to 8 units
Emergency Power Off
Local and remote
SRAM Event Log
500 records
Input Harmonic Improvement
Optional harmonic filter and 12-pulse rectifier
Efficiency

AC-AC
[20K]: 90%

[30K~40K]: 91%

[50K~60K]: 91.5%

[80K~100K]: 92%

[120K~200K]: 92.5%

[260K~500K]: 93%
ECO Mode
[20K]: > 97%

[30~500K]: > 97.5%
Environment

Operating Temperature
0 ~ 40ºC
Relative Humidity
0 ~ 95% (non-condensing)
IP Protection
IP20
Audible Noise (at 1.5 meters)
[20K~40K]: ≤ 60dB

[50K~120K]: ≤ 65dB

[160K~200K]: ≤ 68dB

[260K~400K]: ≤ 72dB

[500K]: ≤ 77dB
Physical-6pules

Dimensions(WxDxH) **
[20K~80K]: 600 x 800 x 1400 mm

[100K~120K]: 800 x 830 x 1700 mm

[160K~200K]: 1200 x 830 x 1700 mm

[260K~400K]: 1600 x 995 x 1950 mm
Weight
[20K]: 365 kg

[30K]: 365 kg

[40K]: 425 kg

[50K]: 460 kg

[60K]: 506 kg

[80K]: 525 kg

[100K]: 700 kg

[120K]: 745 kg

[160K]: 1050 kg

[200K]: 1085 kg

[260K]: 1680 kg

[320K]: 1720 kg

[400K]: 1920 kg
Physical-12pules

Dimensions(WxDxH)
[20K~60K]: 600 x 800 x 1400 mm

[80K]: 830 x 800 x 1700 mm

[100K~160K]: 1200 x 830 x 1700 mm

[200K]: 1400 x 830 x 1700 mm

[260K~400K]: 1600 x 995 x 1950 mm

[500K]: 1900 x 995 x 1950 mm
Weight
[20K]: 450 kg

[30K]: 500 kg

[40K]: 590 kg

[50K]: 640 kg

[60K]: 690 kg

[80K]: 860 kg

[100K]: 1070 kg

[120K]: 1120 kg

[160K]: 1430 kg

[200K]: 1560 kg

[260K]: 2150 kg

[320K]: 2400 kg

[400K]: 2645 kg

[500K]: 3110 kg**
* Single phase output voltage: 220/230/240 is only for 20 ~ 120 kVA models.
** 500 kVA model is assembled into two cabinets: Inverter (width=1100 mm, 1760 kg) and Rectifier (width=800 mm, 1350 kg).

All specifications are subject to change without prior notice.
