Online Ups

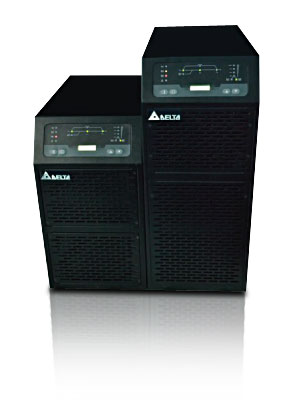

IN Series, Single Phase, 1/2/3 kVA

The Amplon IN series is a True Online Double-ConversionUPS in tower configuration with in-built Galvanic Isolation Transformer Galvanic isolation is recommended for all critical IT application Galvanic Isolation is also useful for installations at sites with poor power condition with weak neutral. The Amplon IN series with inbuilt galvanic isolation acts as a barrier to all raw mains power quality problems and provides clean uninterrupted supply to the critical load.

Amplon IN series is designed for short as well as long backup time requirements with the addition of external batteries. An in-built high level charger shortens the recharging period & increase the availability.


Double-conversion technology.

In-built galvanic isolation transformer

Automatic input frequency.

AC-start and battery-start capabilities

Comprehensive LC Display for monitoring of all UPS Parameters and operating mode / status

Suitable for severe utility conditions (Commercial, Residencial & Rural sites)

High recharging capability increases availability.

Suitable for short (in-built batteries) as well as long (external batteries) backup

Additional in-built battery charging capabilities upto 12A

Smart slot to support Mini SNMP /Mini ModBus /Mini Relay I/O Interface for mission critical applications

In-built maintenance bypass switch for online maintenance in Addision to static bypass (automatic)

Option of Air filters for dusty environment.

High input power factor (IPF> 0.97) and low iTHD saves on installation cost

Wide input voltage range and stable power supply extends battery life

High energy efficiency saves on operative cost and electricity bill.

Technical Specifications

N-6K / N-10K
Power Rating
[N-6K]: 6kVA/6KW
[N-10K]: 10kVA/10KW
Nominal Voltage
200/208/220/230/240 Vac
Voltage range
200/208 (de-rating to 90%) : 100Vac~280Vac *
220/230/240 : 100Vac~280Vac **
40Hz ~ 70Hz
Power Factor
>0.99 (full load)
Current Harmonic Distortion
< 3%
Power Factor
Nominal Voltage
200/208/220/230/240 Vac
50/60 ±0.05 Hz
Voltage Harmonic Distortion
< 2% (linear load)
Overload capability
< 105%: continuous
105% ~ 125%: 2 minutes
125% ~ 150%: 30 seconds
Crest factor
Up to 95%
ECO mode
Up to 98%
192-264Vdc adjustable
Charge current
1.5-8A selectable
Audible Noise
< 50dBA
LED indicators and LCD display
Communication Interfaces
REPOx1, RS-232 Port x1, USB Port x1, Parallel Port x2, Mini Slot x1
Dimensions (WxDxH)
190 x 390 x 325 mm
[N-6K]: 10.1kg
[N-10K]: 12.7kg
Operating Altitude
1000 meters (without de-rating)
Operating Temperature
0 ~ 40℃ (at 100% load)
45 ~ 55℃ (de-rating to 80%)
Storage Temperature
-15 ~ 50℃
Relative Humidity
5 ~ 95% (non-condensing)
* Linear de-rating between 40%~90% load at 100Vac~175Vac.
** Linear de-rating between 40%~100% load at 100Vac~194Vac.

All specifications are subject to change without prior notice.
